AQLite Air Monitoring Packages
The AQLite's actively ventilated, mountable NEMA enclosure and low power requirement (15 watt or less, depending on package choices) are ideal for operating the unit with the user's solar panel, opening the door for vast networks of AQLites to be deployed in remote outdoor locations as well as roadside and urban settings.
The AQLite-Standard package combines our US EPA approved Federal Equivalent Method (FEM) Model 108-L Ozone Monitor with robust and reliable sensors that measure CO2, particulate matter (PM1, PM2.5), pressure (P), instrument temperature (T), and instrument relative humidity (RH). In the AQLite-Customizable packages, any two of the following sensors can be added to the AQLite-Standard's measurement suite: CO, NO2, SO2, total VOCs. The AQLite-Standard and Customizable packages can be purchased with the option to upload data directly to the Cloud via cellular for easy access using the 2B Tech Data Portal. An optional vehicle mounting system can be used for mobile monitoring. The optional weather station enables expanded meteorological data.
In addition to the AQLite-Standard, other configurations are available as described below.

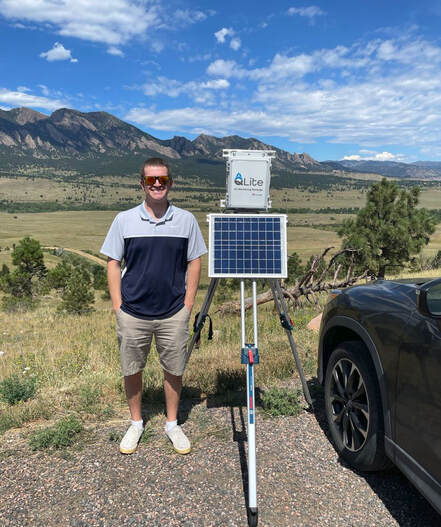

Configured to be powered by the user's solar panel.
|

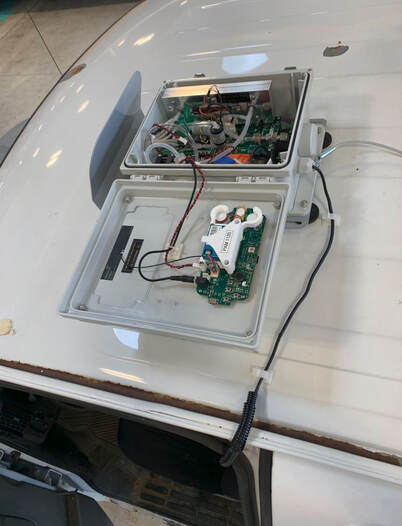

Our vehicle mounting system for mobile monitoring.
|
Features
- Configurations available for measuring O3, CO, CO2, PM1, PM2.5, SO2, NO2, TVOCs
- O3 measurements using a highly accurate FEM ozone monitor with a small footprint
- Includes measurements of pressure (P), instrument temperature (T), and instrument relative humidity (RH) in the data stream for the AQLite-Standard and AQLite-Customizable configurations
- Real-time cellular data transmission to the Cloud
- Access to data via the Data Portal on the 2B Tech website
- Bluetooth data transmission and mobile smartphone application (iOS and Android) for real-time mapping and graphing of data
- MicroSD data storage
- AC-DC or DC-DC configurations
- Power requirement: 15 watt or less, depending on package chosen
- Panels available for mounting upon request
- RS232 data output (and Modbus over RS485 data output coming soon)
- Option for Solar Power configuration, enabling remote applications using the user's solar panel
- Optional weather station for expanded meteorological data
- Optional vehicle mounting system for mobile monitoring
Configurations
- AQLite Basic Package: Ozone (O3) only
- AQLite Standard Package: O3, carbon monoxide (CO), carbon dioxide (CO2), and particulate matter (PM1, PM2.5)
- AQLite Customizable Packages: O3, PM1/PM2.5, and CO2 and up to two of following sensors: CO, total volatile organic compounds (TVOCs), sulfur dioxide (SO2), or nitrogen dioxide (NO2)
Specifications
|
General Specifications for the AQLite |
|
|
AQLite Standard Power Consumption: 15 watt Dimensions: 10.12 x 8.12 x 4.38 in (25.7 x 20.6 x 11.1 cm) Weight: 7 lb (3.2 kg) Operating Temperature Range: 0 to 50 °C for ozone Measurement Interval: 2 s Data Outputs: Cellular Upload to Cloud, RS232, Bluetooth, microSD data card |
|
|
AQLite Basic Power Consumption: < 7 watt Dimensions: 10.12 x 8.12 x 4.38 in (25.7 x 20.6 x 11.1 cm) Weight: ~6 lb (2.7 kg) Operating Temperature Range: 0 to 50 °C for ozone Measurement Interval: 2 s Data Outputs: RS232 |
|
|
Instrument/Sensor Specifications (per manufacturer) |
|
|
Ozone (O3) Instrument: 2B Tech Model 108-L Ozone Monitor (FEM) Measurement Principle: UV absorption at 254 nm, single beam Measurement Range: 0-100,000 ppb (0-100 ppm) Precision: Greater of 1.5 ppb or 2% of Reading Resolution: 0.1 ppb Measurement Interval: 2 s Response Time: < 20 s Flow Rate: Minimum required: 0.6 L/min; Maximum: 1.5 L/min Sensitivity Drift: < 1%/day, < 3%/year Baseline Drift: < 3ppb/day, < 6 ppb/year |
|
|
Carbon Dioxide (CO2) Sensor: Telaire T6713 (NDIR) Measurement Range: 0-5000 ppm Accuracy: 400-5000 ppm: ± 30 ppm, ± 3% of reading Response Time: < 3 min for 90% step change |
Particulate Matter (PM1, PM2.5) Sensor: Plantower PMS7003 (Laser Scattering) Particle Size Range: 0.3-10 μm Mass Concentration Range: 0-999 μg/m3
Count Accuracy:
50% @ 0.3 μm,
98% @ ≥ 0.5μm |
|
Carbon Monoxide (CO) Sensor: Alphasense CO-A4 (Electrochemical) Measurement Range: 0-500 ppm Precision: contact 2B Tech for information Response Time: < 30 s for a 10-ppm step change |
Total VOCs Sensor: ION Science Mini-PID2 HS (Photoionization) Measurement Range: 0 to 3 ppm Minimum Detection Limit: 0.5 ppb Response Time: < 12 s Sensitivity: > 600 mV per ppm |
|
Nitrogen Dioxide (NO2) Sensor: Alphasense NO2-A43F (Electrochemical) Measurement Range: up to 20 ppm Noise (±2 SD): ±15 ppb equivalent Response Time: < 80 s from 0 to 2 ppm NO2 |
Sulfur Dioxide (SO2) Sensor: Alphasense SO2-A4 (Electrochemical) Range: up to 50 ppm Noise (±2 SD): ±15 ppb equivalent
Response Time:
< 20 s from 0 to 2 ppm SO2 |
|
Pressure Sensor: Bosch BME680 Measurement Range: 300 to 1100 hPa Accuracy: ±1.0 hPa Resolution: 0.18 Pa Long-Term Stability: ±1.0 hPa per year |
AQLite Instrument Temperature and Relative Humidity Sensor: Honeywell HIH8120 (Platinum RTD / Capacitive) Measurement Range: 0-65 °C / 0 to 100 %RH Accuracy: ± 0.5 °C from 5 °C to 50 °C / ± 2 %RH Response Time (RH): 8 s |
** Any 2 of the following sensors can be chosen in the Customizable packages: total VOCs, CO, SO2, NO2.
